What’s Included In The Download

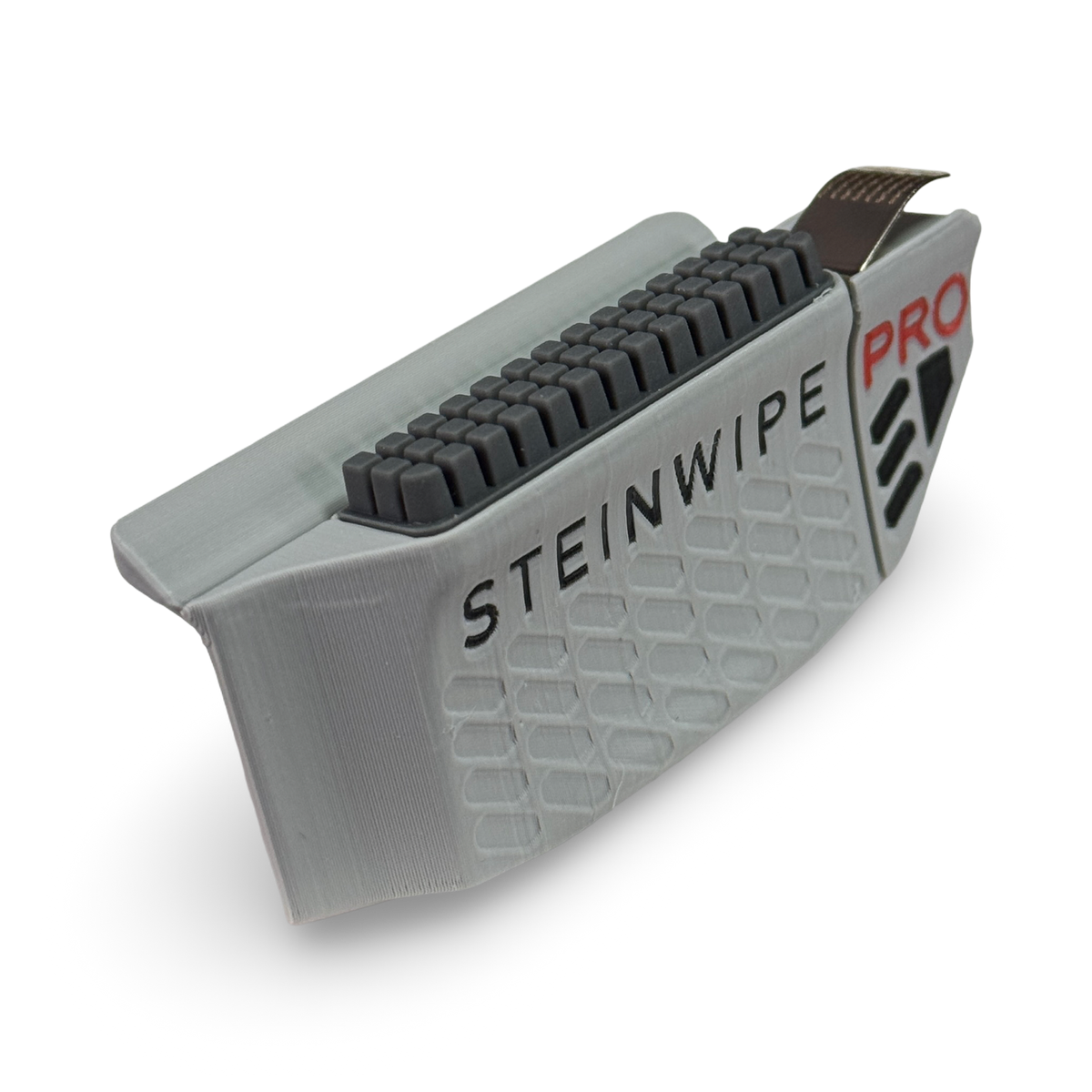

• STL files for the Advanced wiper system (Free release)

  1. Front wiper slide housing cover


  2. ProTab sliding mount

  3. ProTab locking drawbar


  4. Tape-on no-drill magnetic install plate (coming soon)

• Fusion 360 CAD Model (Paid Version Only. Included in Dev. Pack Pro)


• Optimized BBS .3mf print profile for high-tolerance parts

• Setup notes for best print results

• Terms of use

*This listing includes hardware STL model files and .3mf print profile only.
Motion control code, Fusion 360 files, and advanced system functionality are provided separately through Dev.Pack Pro.

**Backing plate tray for holding the M3 nuts behind the rear printer panel and drill template file from the original release works with this updated model

Additional Hardware Required

The following components are required to complete the assembly:

• 10x5x2 Magnets (2) N35 or higher recommended
  Source from leckiestein.com or Bambu Store

• BT2.6 x 8mm (3) Fasteners For Plastic. These are the screws that come with scraper blades.
  Source from leckiestein.com or Bambu Store

• Double-sided 20x40mm 3M VHB tape Bambu Store


• A1 Wiper Pad (1)
  Source from Bambu Store

• ProTab Contact (1)
  Source from leckiestein.com

Design Highlights

• Repeatable X and Z positioning

• Adjustable ProTab height

• Text depth for optional colour fill

• Tool-less removal for cleaning and maintenance

• Magnet-assisted mounting with structural geometry support

• Hidden fasteners for a cleaner look

• Maintains access to the carbon filter door

• Designed to print without supports

Print Profile Notes - I've printed dozens of test parts so you don't have to

This system requires tight tolerances for proper fit and performance. This print is about 2.5 hours if using my provided profile - don't rush a good fit!

• .3mf print file is for Bambu Studio - no modified Gcode

• Perpendicular layer lines - designed to be printed to avoid interlocking layer lines on sliding parts

• Parts are printed by object for consistent layer times and to avoid knocking tall parts off the bed on Z hop travels

• Reduced speeds for improved cooling, layer adhesion, and dimensional accuracy

• Reduced line width for better detail and corners

• 0.14mm layer height for overhang quality

Important:

• Heat-dry your PETG-HF filament before printing.

• Bambu Lab PETG-HF tends to under-extrude with stock profiles. Set your flow ratio between 0.95–0.985 for best results.

• Calibrate Pressure Advance correctly for lower speeds used in this profile for best results

• X1C PA auto cali may not function correctly due to the slower speeds and low volumetric flow used in the PETG filament profile.

• Fit between the front slide cover and backing plate should be a bit tight at first and will loosen up after use inside your heated machine.

Special Attention to Retraction Length

There’s one setting responsible for a surprising number of print quality issues: Retraction Length.

Stock filament and print profiles often use ~0.8mm retraction length during layer changes and a whopping 2mm retraction during AMS cycles. While these are safe values to reduce blobs during travel for a wide range of filaments, it can also introduce air into the melt zone and it's affecting your print quality.

That air can show up as:

• Small gaps in extrusion lines

• Surface defects that resemble wet filament

• Increased stringing

• Under extrusion

If you’re seeing these issues and your filament is dry, retraction may be the cause. Try using Setting Overrides to reduce retraction Length and observe how your extrusion behaviour changes.
