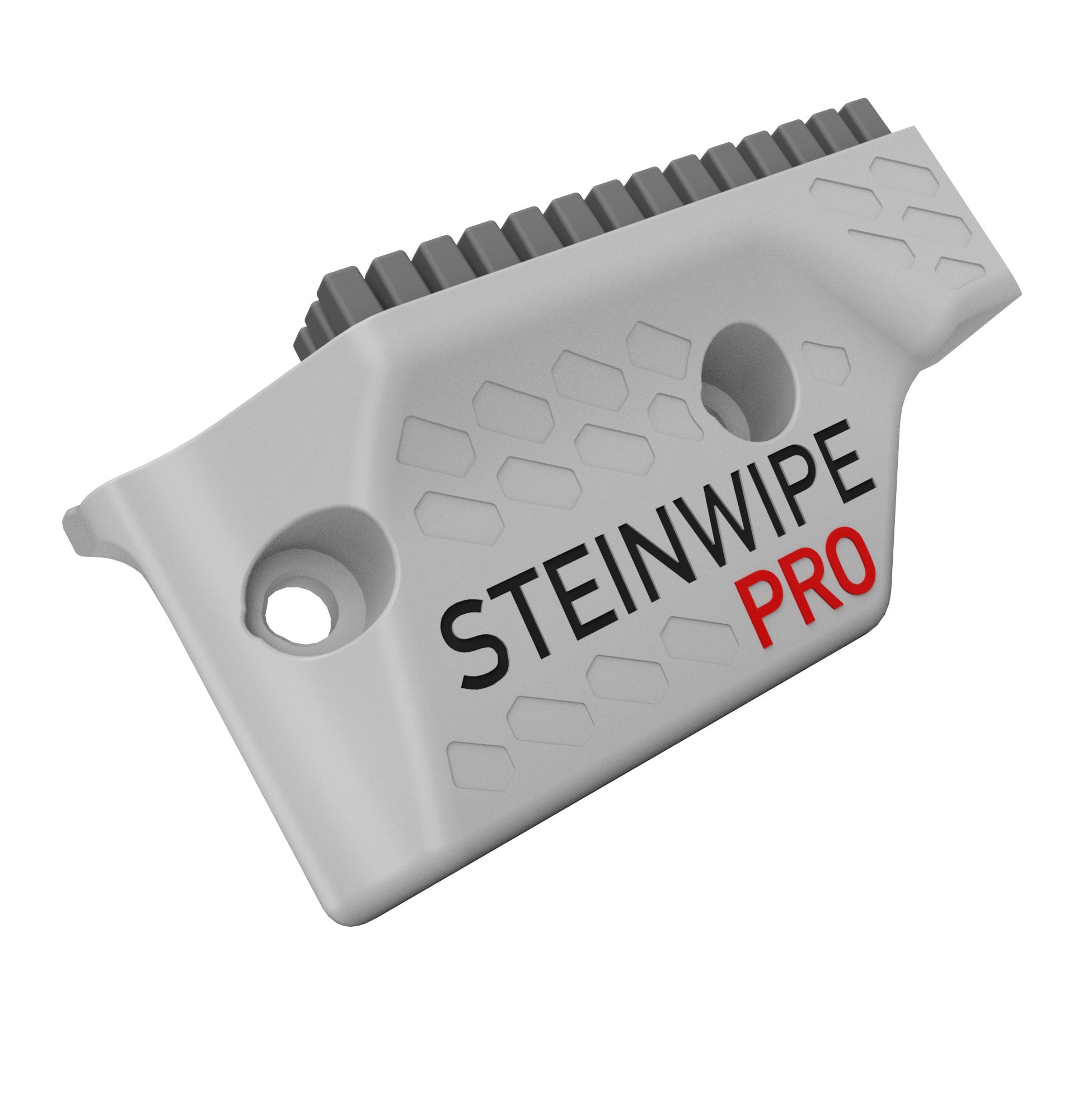

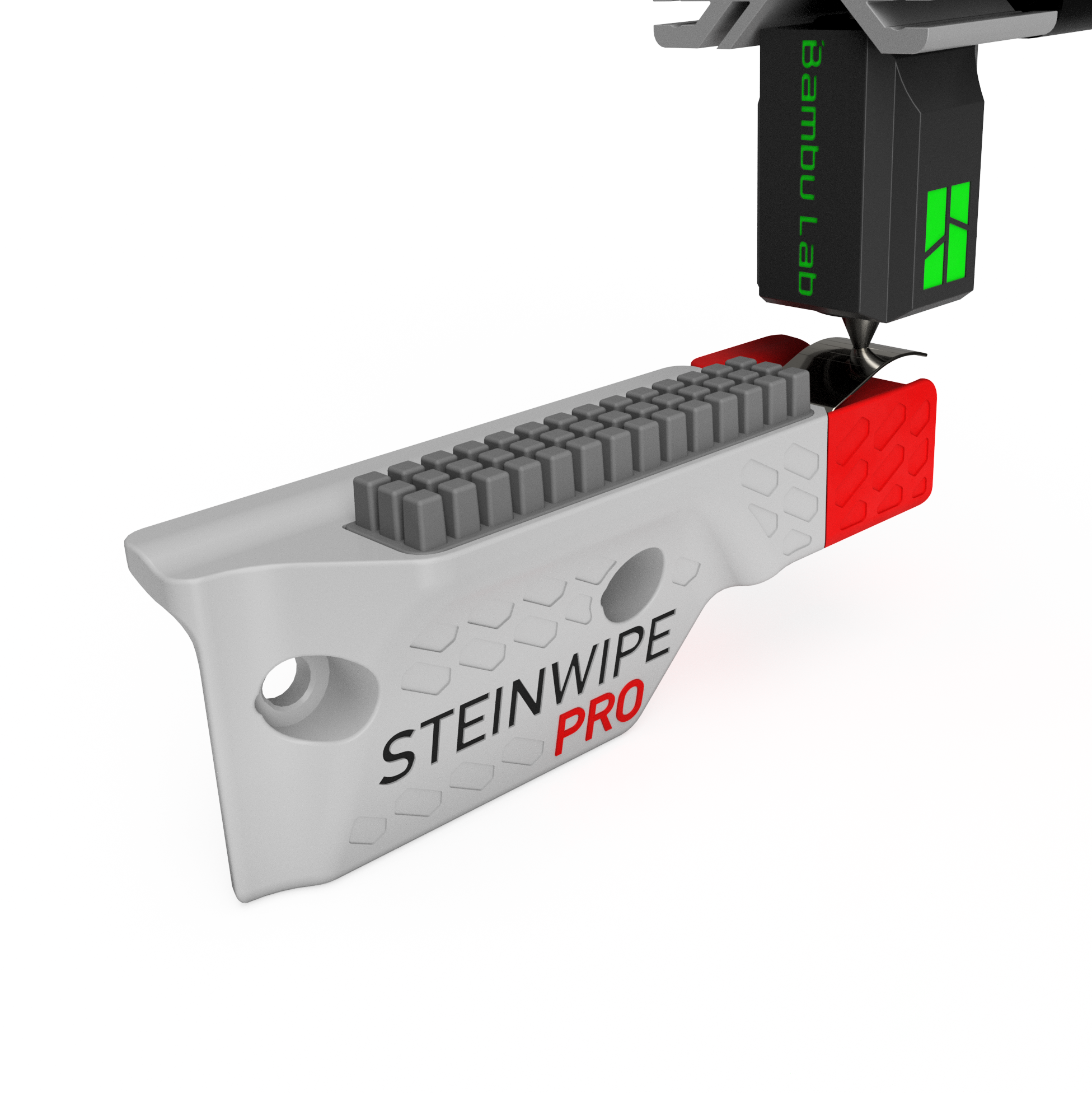

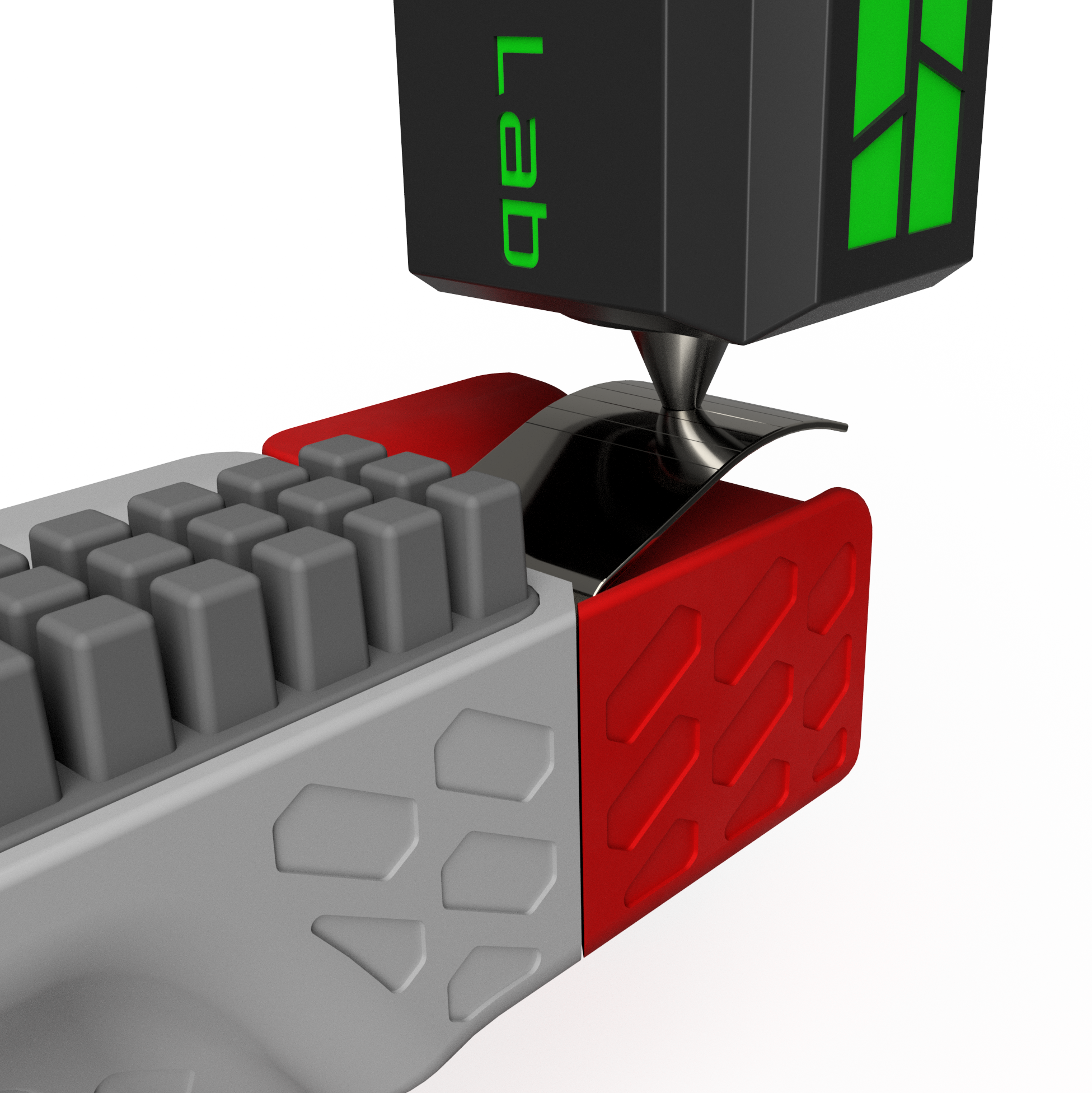

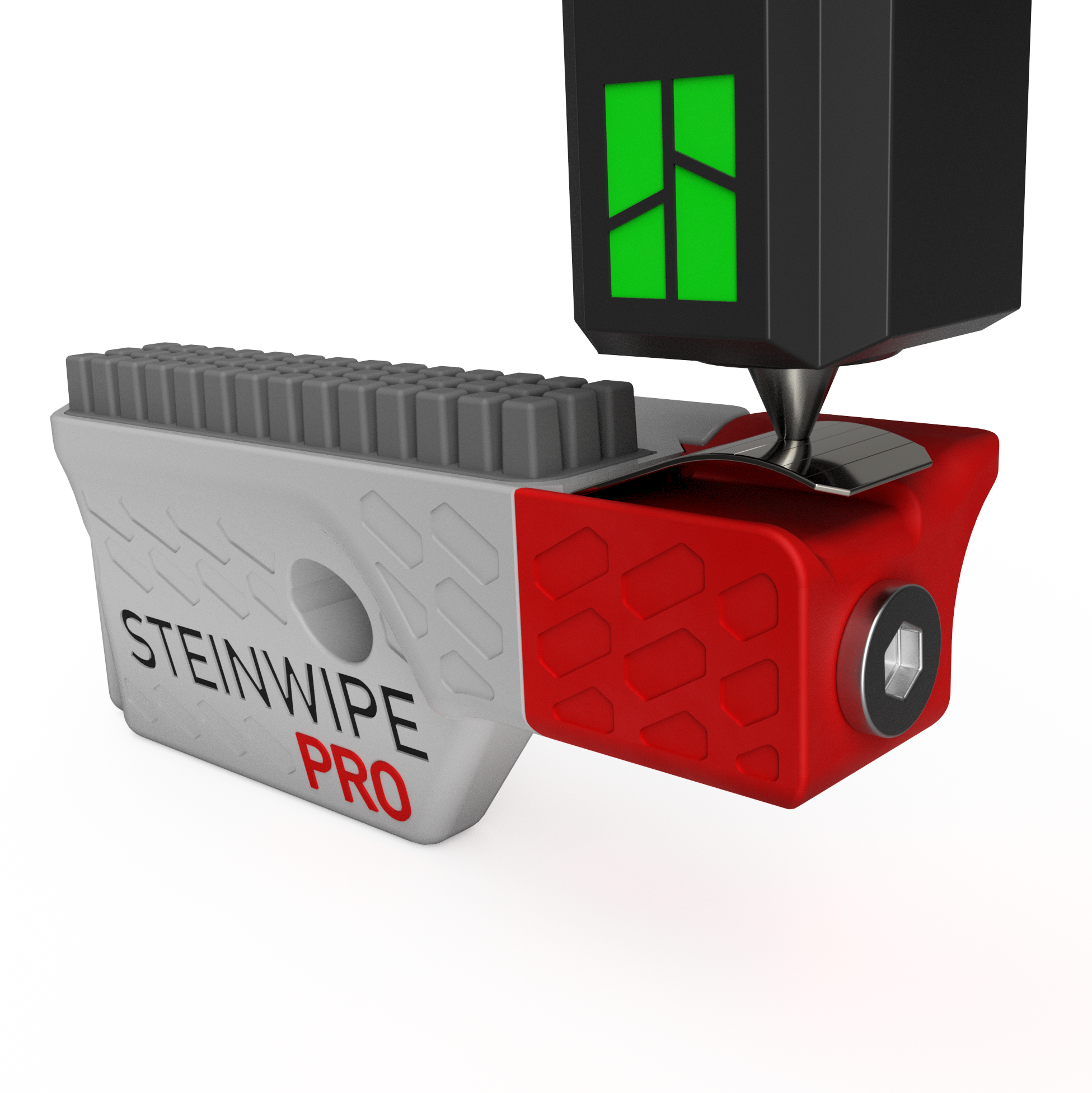

The SteinWipe Pro Standard Edition wiper model. A refined evolution of the original SteinWipe wiper mount, now with the first integrated ooze control tab for Bambu Lab P1 Series and X1C printers. The Standard Edition keeps full compatibility with existing SteinWipe Motion Control code and original V1 mounting hole locations while bringing improved nozzle consistency and a tighter, more polished design.

The Standard Edition is the bolt-in single-piece option in the SteinWipe Pro hardware line. Where the Advanced Edition uses a magnetic sliding bracket for tool-less removal, the Standard Edition is a one-piece mount that bolts directly to the printer using the same three-hole pattern as the original V1 mount. Simpler install, fewer parts to print, faster setup; trade-off is that removal for cleaning requires unbolting (about 30 seconds with a 2.5mm hex driver).

To ensure proper fitment across different printers and nozzle setups, the Standard Edition ships in five Z offset variants: -1.0mm, -0.5mm, 0.0mm, +0.5mm, and +1.0mm. Choose the variant that matches your specific machine; most users on stock Bambu nozzles fit the 0.0mm variant cleanly. The matching ProTab Mount also ships in five Z offset variants for the same reason.

Print time is approximately 1.5 hours per variant using the provided BBS .3mf print profile. Material is PETG-HF; print without supports, brim, or raft, with print-by-object enabled. The print profile prioritizes accuracy and consistency over speed; this is intentional for the tight tolerances required to mate cleanly with the ProTab module.

$9.95 CAD

Shipping calculated at checkout.

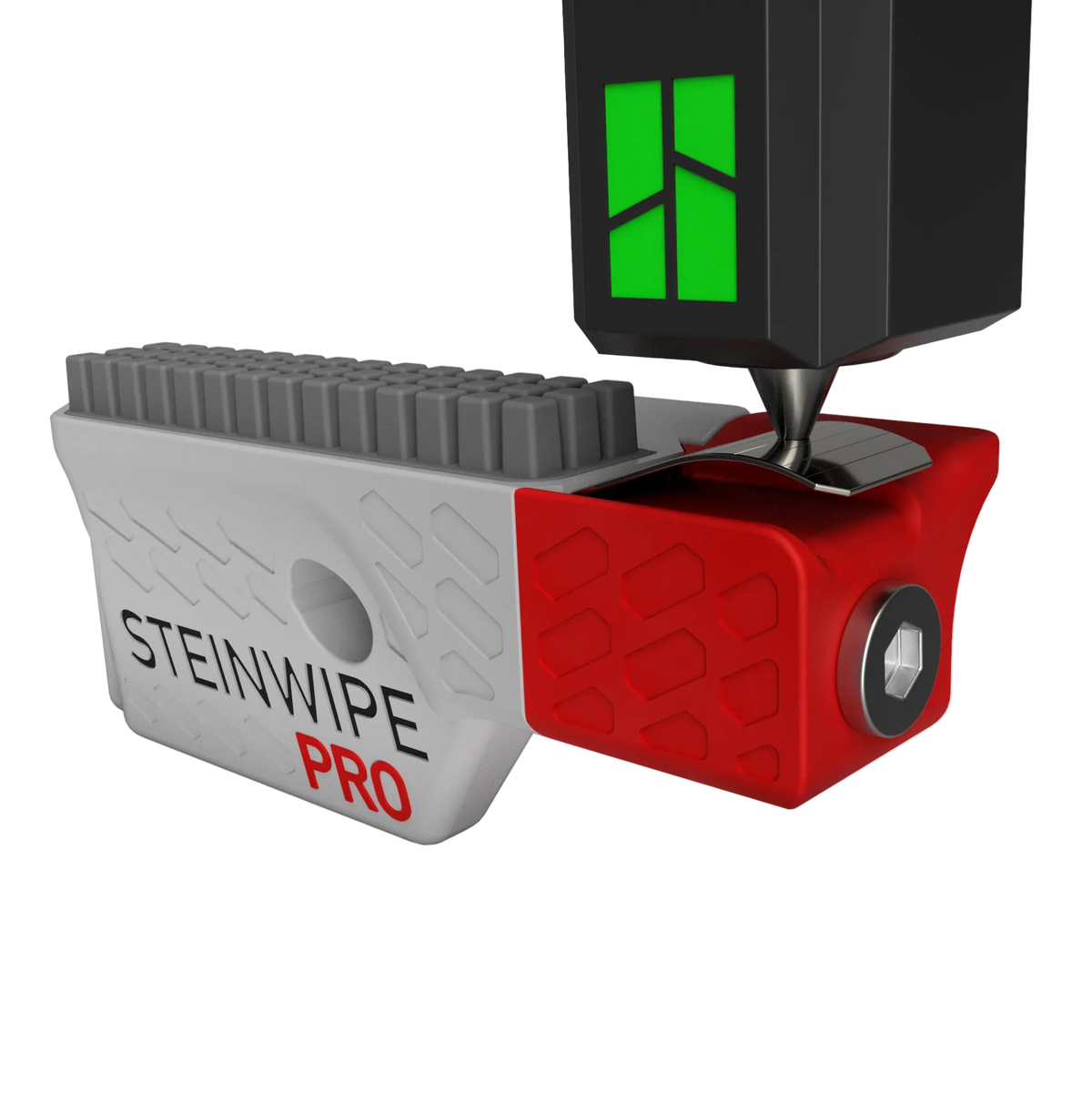

TrueNozzleManagement

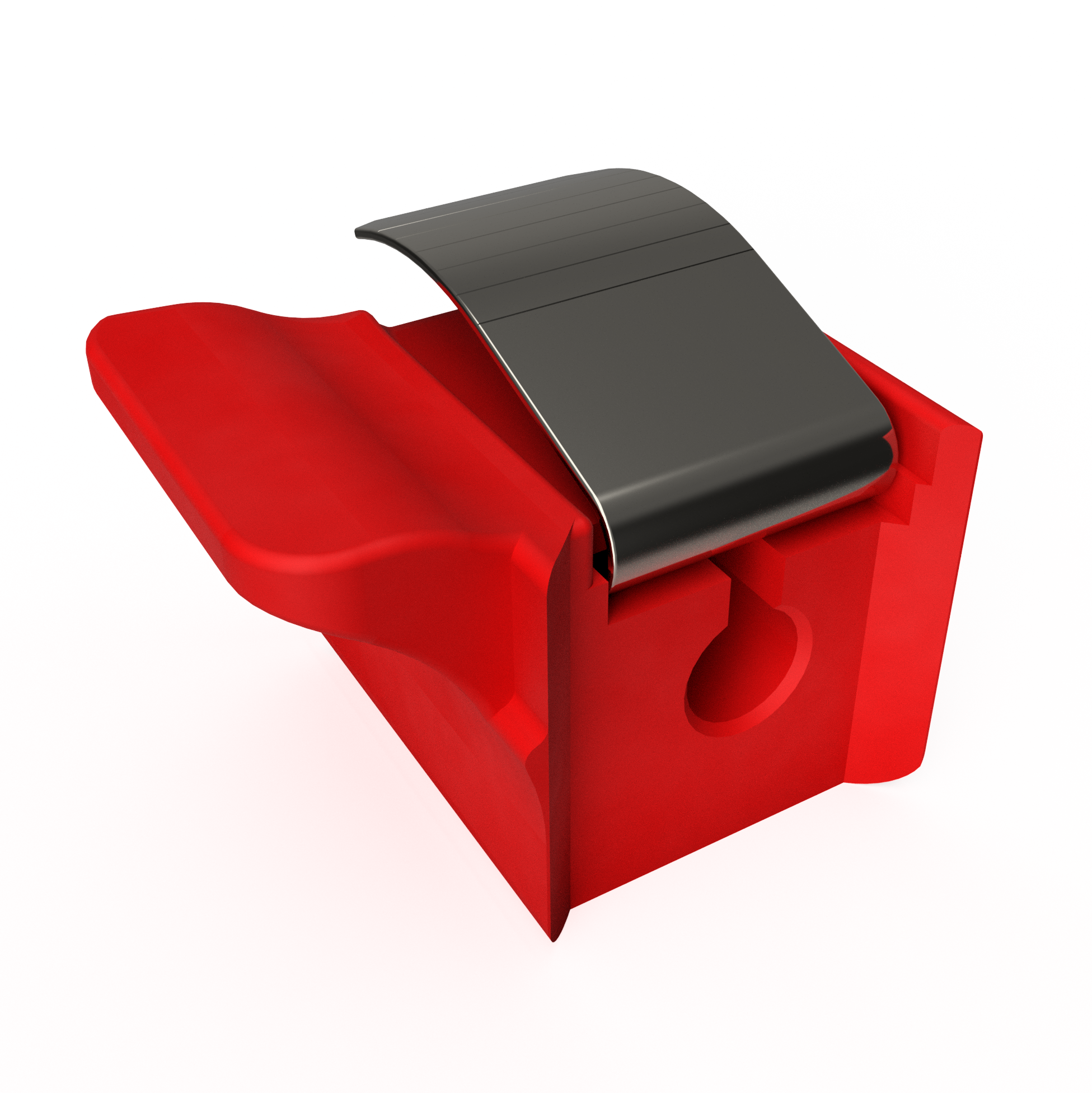

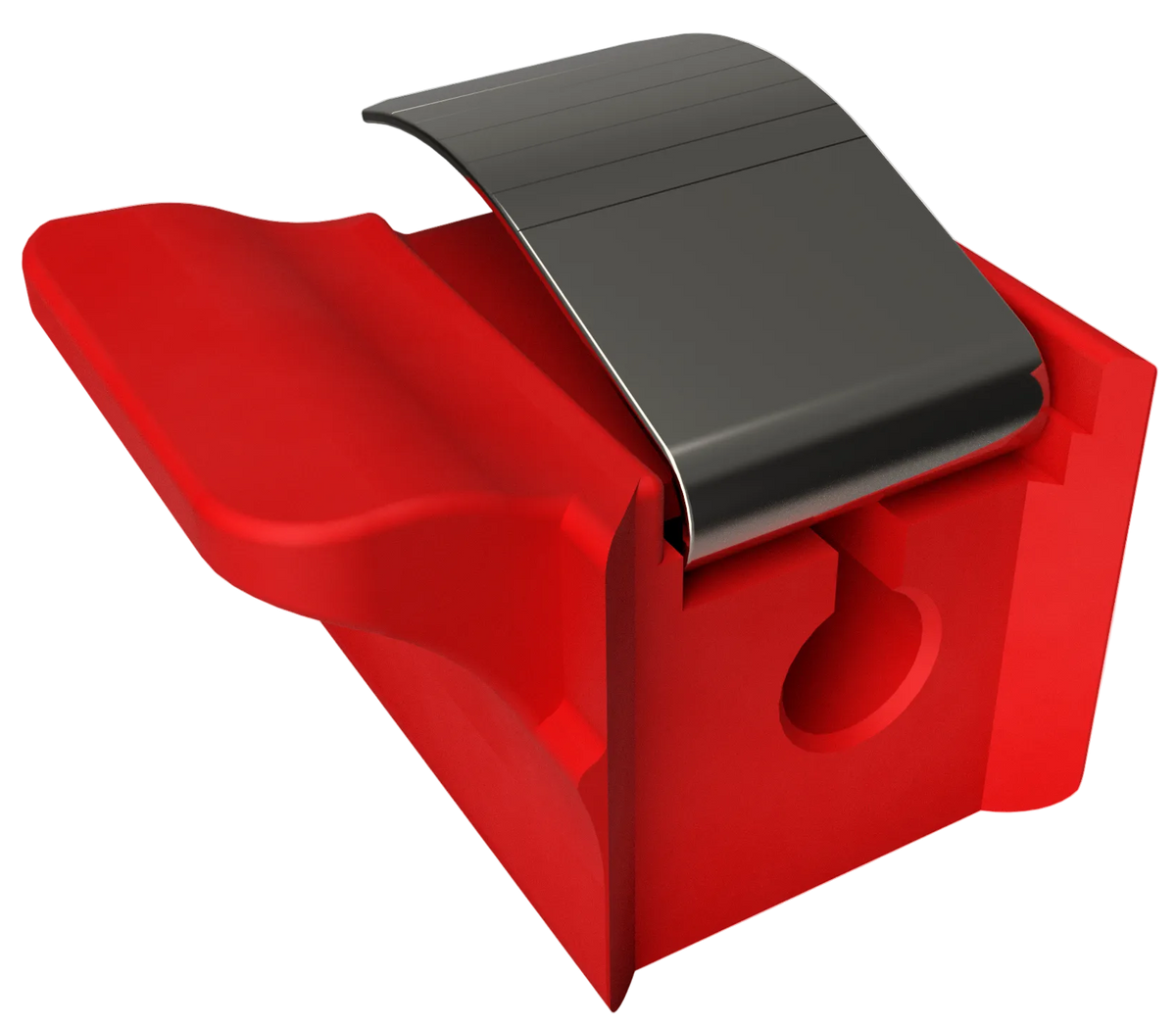

RemovableProTabMount

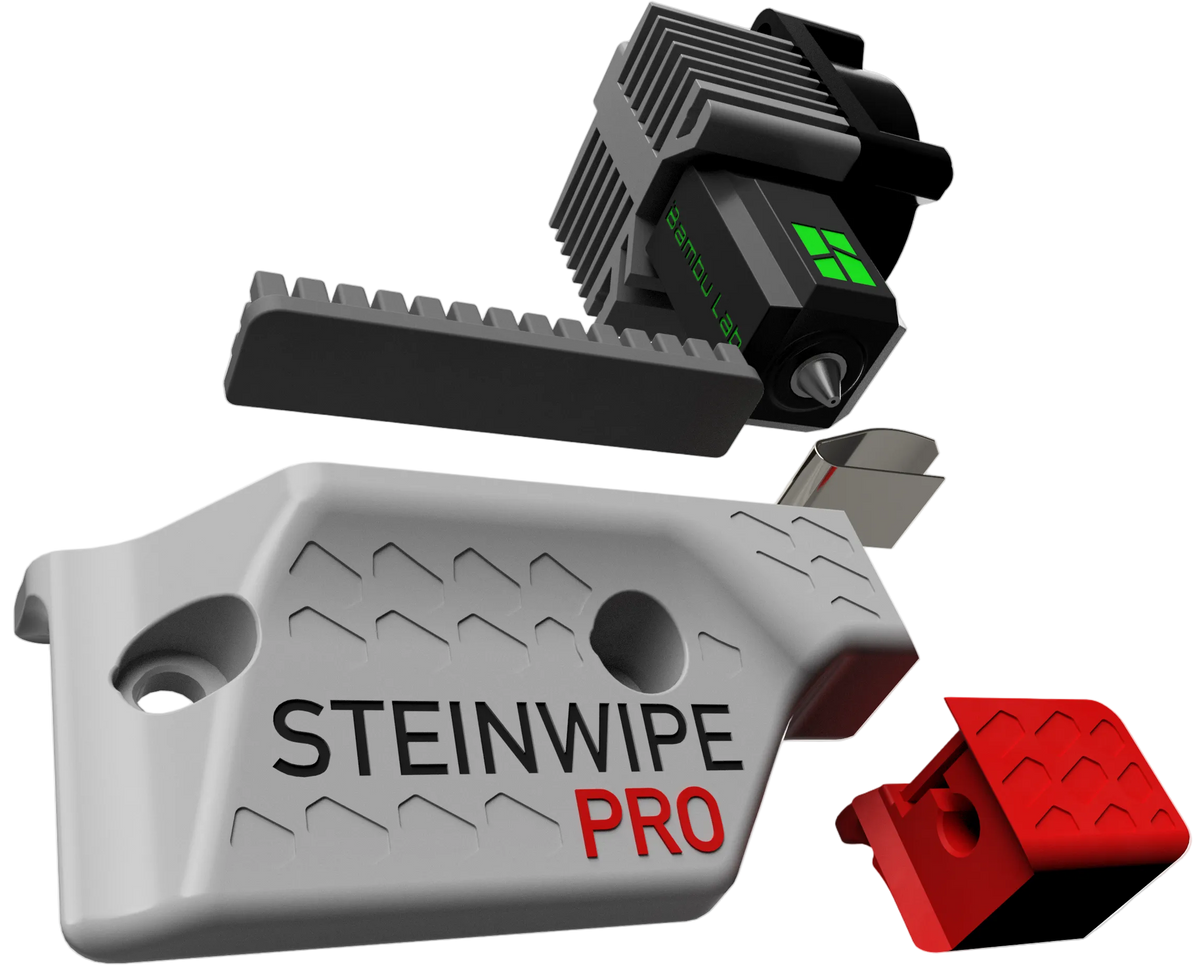

DefaultsOutOfSight

Overview

What’s Included In The Download

Fusion 360 + STEP files (Paid release)
STL files for the "Standard" wiper system (free release)
1. Wiper Mounting Bracket -1.0mm Z Offset
2. Wiper Mounting Bracket -0.5mm Z Offset
3. Wiper Mounting Bracket 0.0mm Z Offset
4. Wiper Mounting Bracket +0.5mm Z Offset
5. Wiper Mounting Bracket +1.0mm Z Offset
6. Bolt-on ProTab Mount -1.0mm Z Offset
7. Bolt-on ProTab Mount -0.5mm Z Offset
8. Bolt-on ProTab Mount 0.0mm Z Offset
9. Bolt-on ProTab Mount +0.5mm Z Offset
10. Bolt-on ProTab Mount +1.0mm Z Offset
11. New drill template (coming soon**)
12. New backing plate M3 nut tray (coming soon**)
Optimized BBS .3mf print profiles (5) for clean, high-tolerance parts
Setup notes for best print results
Terms of use

*This listing includes hardware STL model files and .3mf print profile as a free release to users logged in. Fusion 360 & STEP files are paid potion of this release.
Motion control code for system functionality are provided separately through Dev.Pack Pro.

**Backing plate tray for holding the M3 nuts behind the rear printer panel and drill template file from the original release works with this updated model

Additional Hardware Required

The following components are required to complete the assembly:

M3 x 8 Button Head Cap Screws (3)
Source from Bambu Store
M3 nuts (3)
Source from Bambu Store
A1 Wiper Pad (1)
Source from leckiestein.com or Bambu Store
ProTab Contact (1)
Source from leckiestein.com

Design Highlights

• Repeatable X and Z positioning for consistent nozzle engagement

• Fixed Z height optimal height achieved by printing 1 of 5 model options for your setup

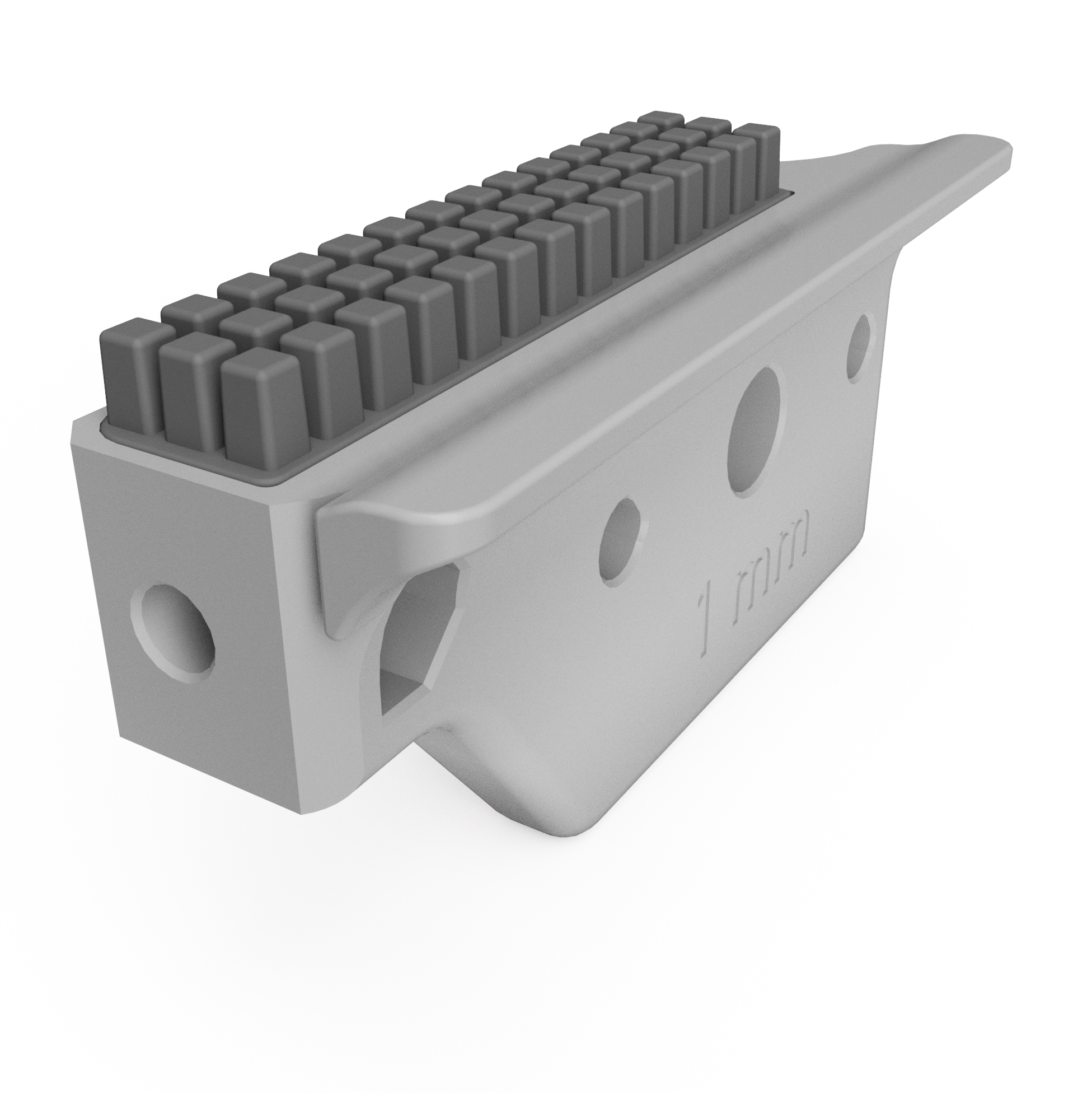

• Wiper mount labeled with Z offset for quick identification and setup

• Text depth designed for optional color fill

• Two-screw removal for easy cleaning and maintenance

• Maintains full access to the carbon filter door

• Designed to print without supports for clean geometry and reliable results
