SteinWipe Pro Printed Bolt-on Kit | Advanced Edition

Choose Nozzle Control Tab Style Smooth Laser Textured

Choose Faceplate Color Scheme Mono Color Tri-Color

$15.95 CAD

Shipping calculated at checkout.

Printing A New Standard

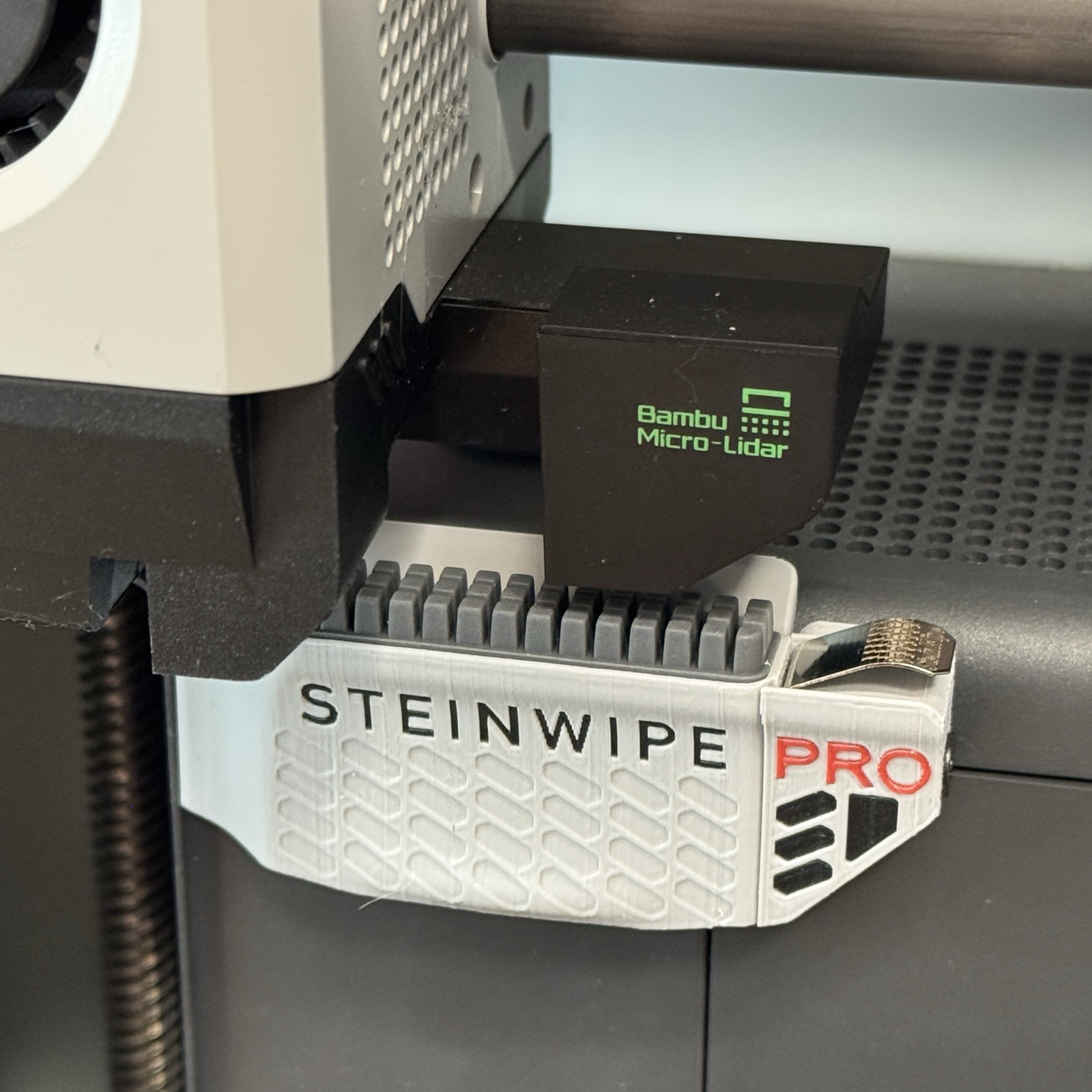

Bring additional precision and reliability to your Bambu Lab printer with the SteinWipe Pro Advanced Edition nozzle management system for Bambu Lab P1P/P1S/X1C 3D printers.

This version of the SteinWipe system has been paired with an OEM Bambu Lab A1 wiper and printed to perfection - ready to install eliminating the need to dial in tight-tolerance prints yourself. Each part is produced using Bambu Lab PETG-HF for excellent strength, durability, and dimensional accuracy.

Designed to provide nozzle management to an unmanaged nozzle. SteinWipe Pro paired with SWMC Pro helps reduce filament ooze, improves startup consistency and speed, and delivers cleaner first layers. The system integrates seamlessly with your X1 & P1 series printer and is engineered for repeatable, reliable performance.

NOTES:

Physical hardware item only - Gcode/presets not included
Must calibrate XY wiper offsets in SWMC to prevent premature wear
Mount hole template based on original wiper design here

PrintedToPerfection

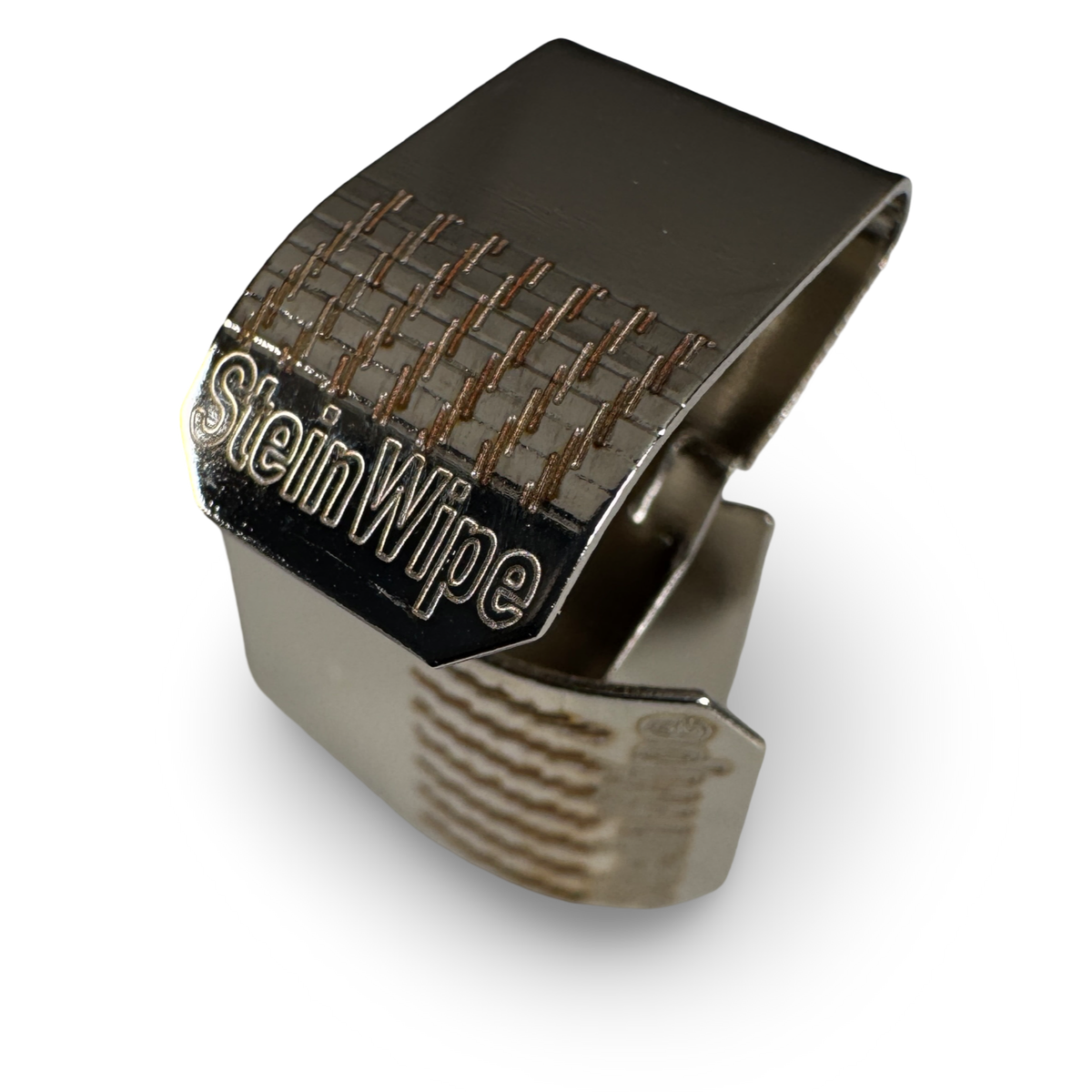

GripUnwantedMaterial

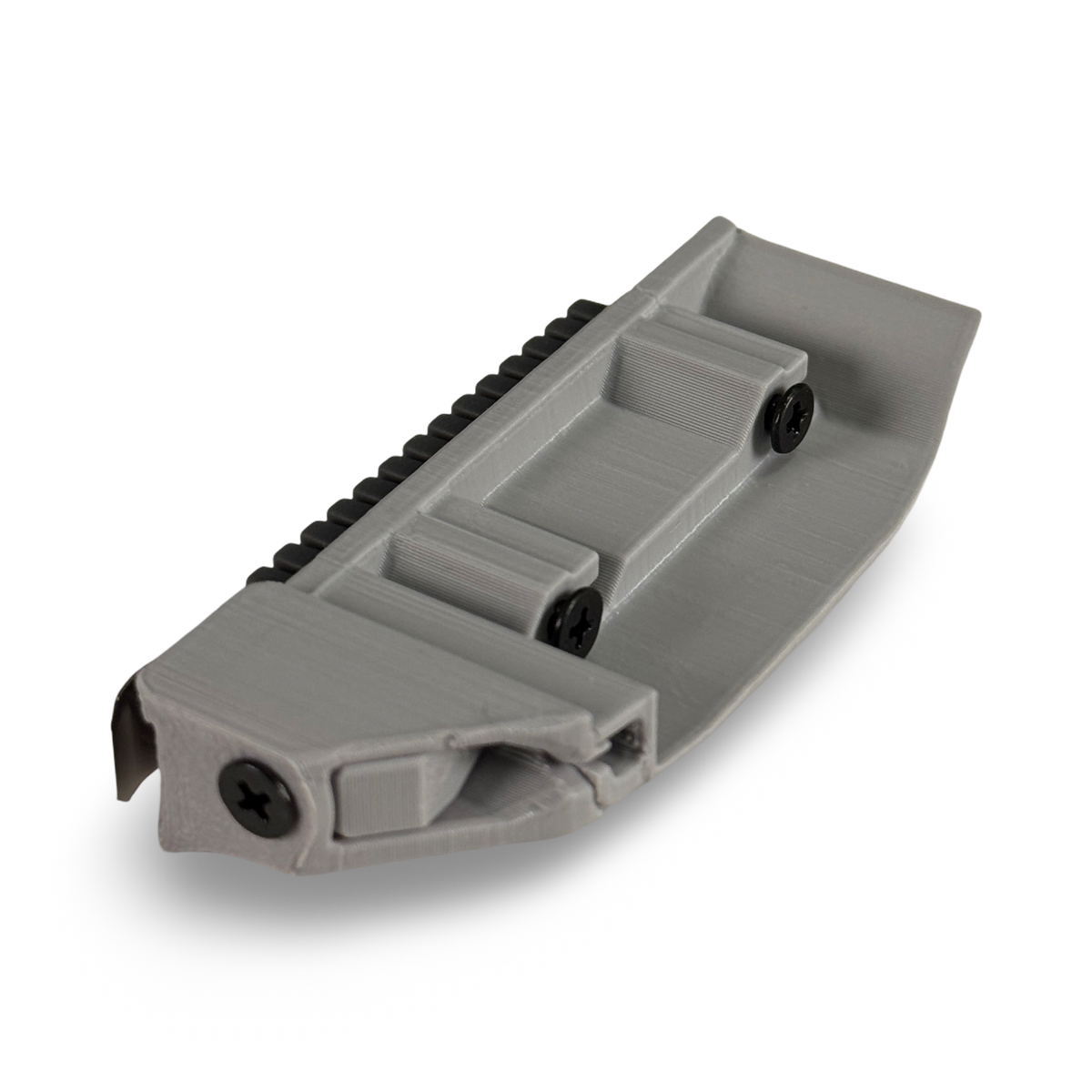

IndependentHeightAdjustability

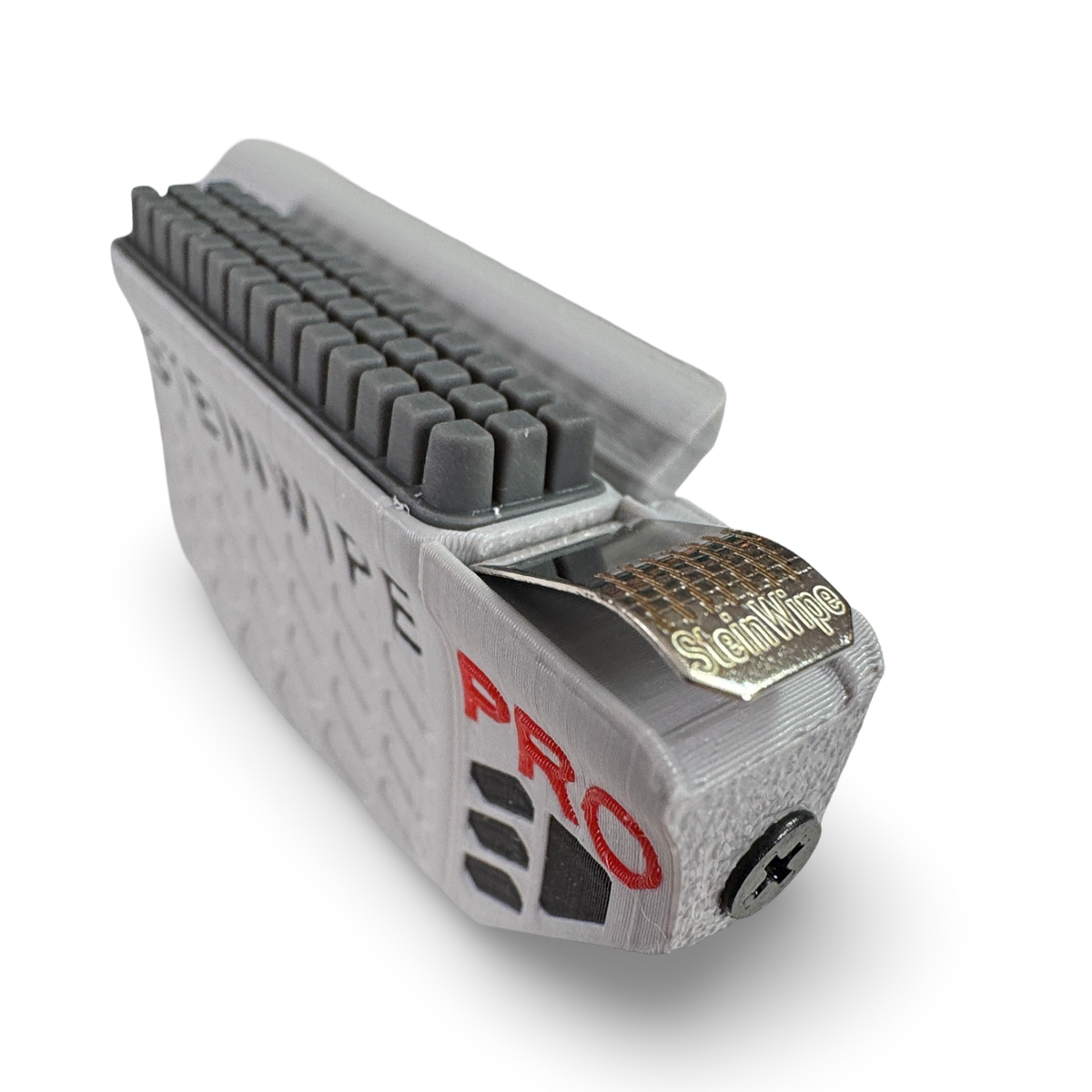

DefaultsOutOfSight

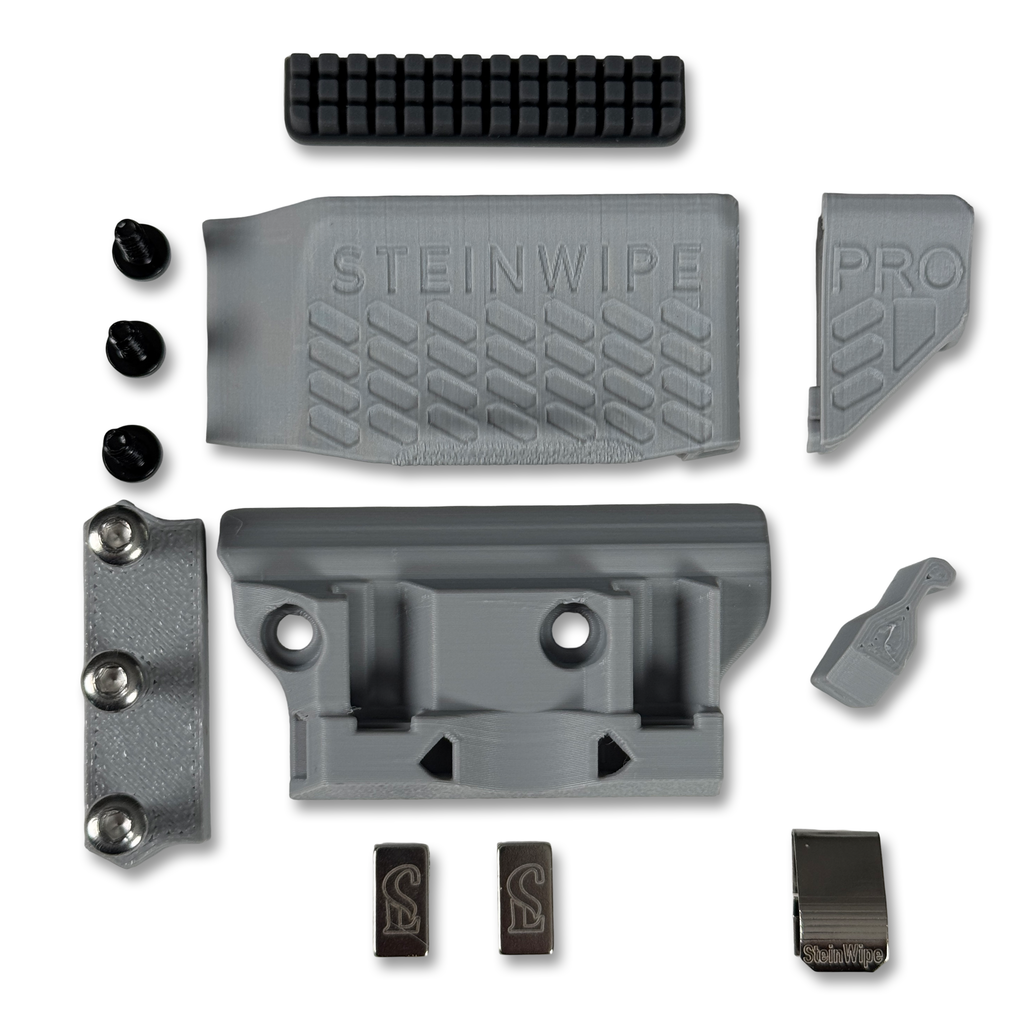

What’s Included in the Kit

SteinWipe Pro Advanced front wiper shell (1pc)
Configured Options:

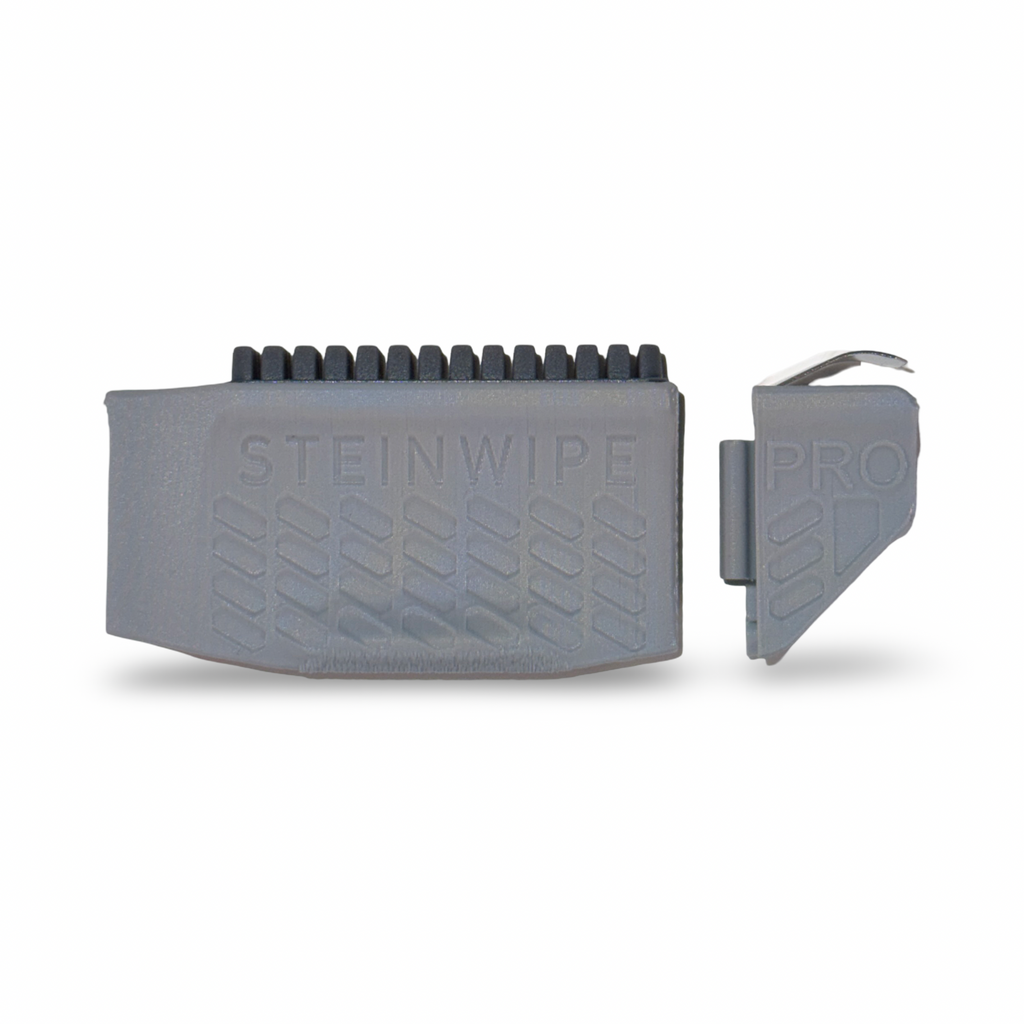

1. Mono Color: Printed in BBL Gray PETG-HF (33101)

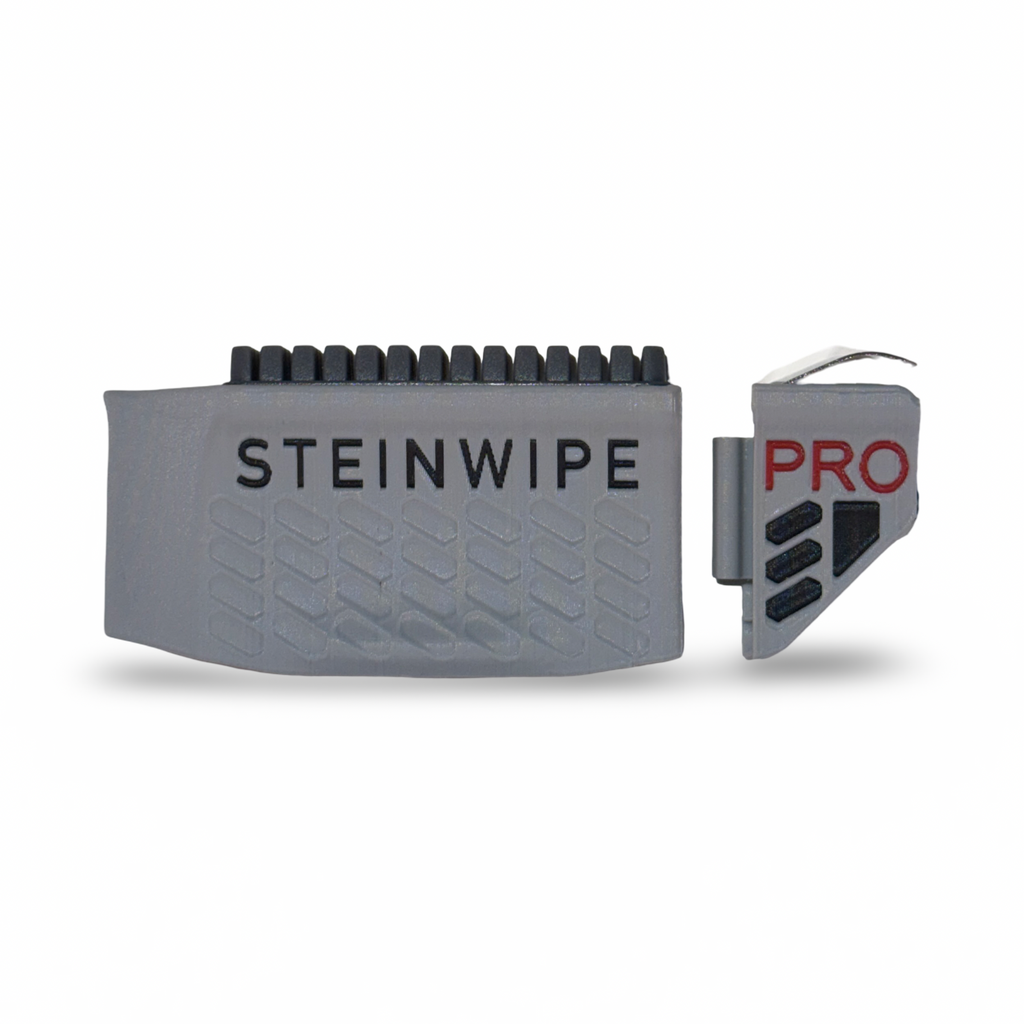

2. Tri-Color: Printed in BBL Gray PETG-HF (33101), Black (33102), Red (33200)
3. Tri-Color Coming Soon: Printed in BBL Titan Gray PETG-CF (31101)
Nozzle control tab (1pc)
Configured Options:
1. Smooth – ideal for printing PLA with brass nozzles
2. Fiber laser textured – ideal for printing PETG with stainless steel & hardened steel nozzles
Bambu Lab OEM A1 wiper pad preinstalled (1pc)

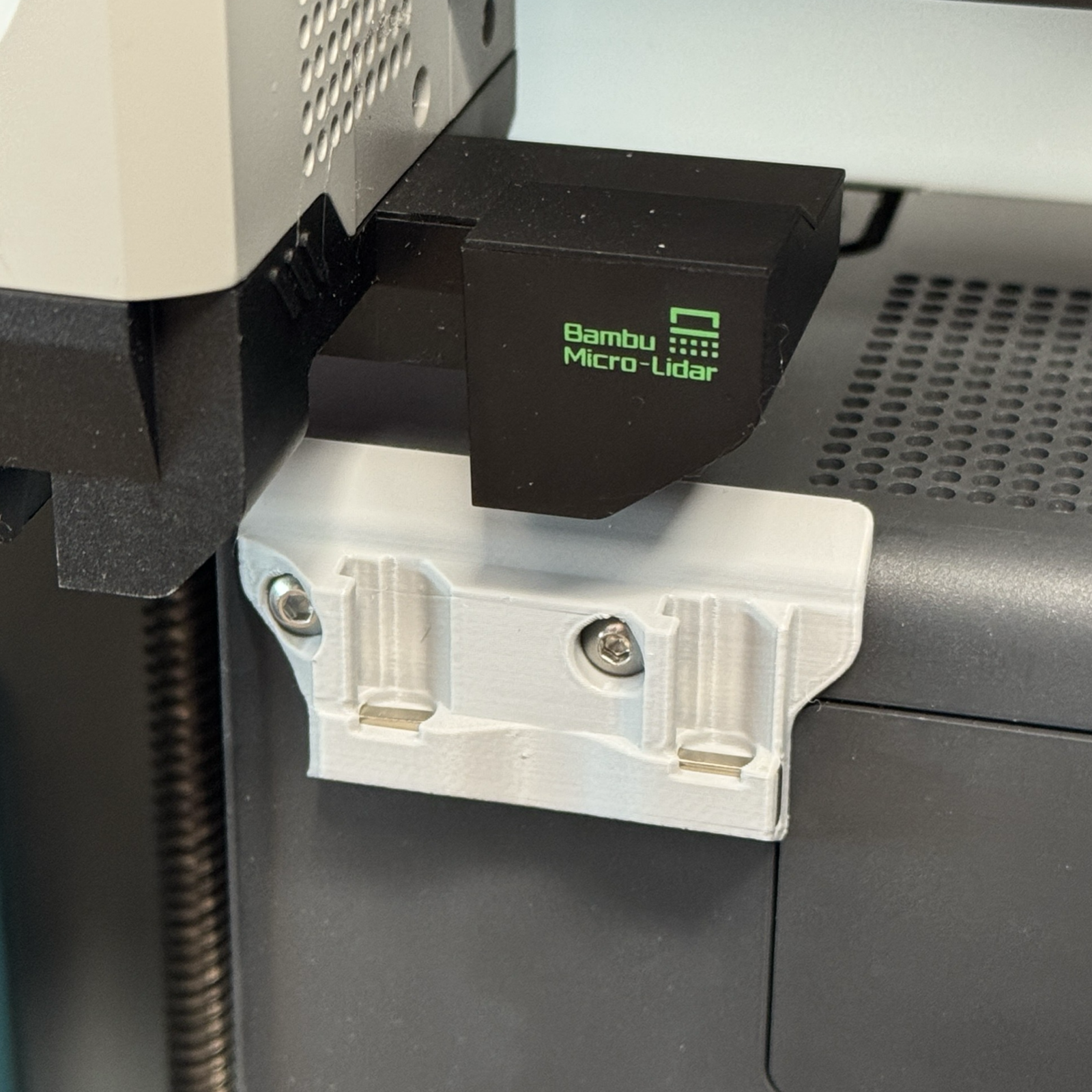

Printer-side sliding magnetic mounting bracket -0.5mm to +1.5mm offset (1pc)
Control tab tailstock mount (1)
Control tab mount tailstock drawbar (1)
M2.6 x 8mm carbon steel plastic screw preinstalled (3pcs)
M3 x 8 Button Head Socket Cap Screw (2)
M3 x 6 Button Head Socket Cap Screw (1)
Printer panel backing plate with (3) M3 nuts embedded (1pc)
5 x 10 x 2mm high-power bar magnets preinstalled (2pc)

What Does the Control Tab Do?

(SteinWipe Motion Control Pro (SWMC Pro) not included)

The Control Tab is a key part of the SteinWipe Pro system, enabling precise nozzle handling, cleaner purging, and improved print reliability.

Provides a dedicated surface for controlled nozzle scraping
(No more scraping the back of the build plate)
Fiber laser textured option adds grip for aggressive cleaning and reliable purge separation
Ideal for PETG
Not recommended for soft brass nozzles (e.g., Revo)
Enables high-temperature purging for cleaner material flushing
Pulls heat from the nozzle tip through direct contact to reduce ooze
Works with the part cooling fan for accelerated nozzle cooldown
SWMC Pro actively manages ProTab temperature, allowing safe use with PETG-printed mounts
Helps prevent end-of-print stringing
Improves ooze control during nozzle heating and cooling (including filament swaps)
Stabilizes nozzle behavior during X1 Pressure Advance calibration scans
Non-stick, self-cleaning spring design helps eject debris automatically

Notes

A single Control Tab is required and installs into the SteinWipe Pro wiper mount.
A second tab installed in place of the stock chute wiper (not included) is optional and required for continuous movement purging (Sidestepping) for nozzle docking .

The ProTab mount does not block access to the carbon filter door on P1 Series & X1C.

SteinWipe Pro is fully compatible with standard printing. You can safely use the Handy app and stock Bambu Lab profiles with it installed.
